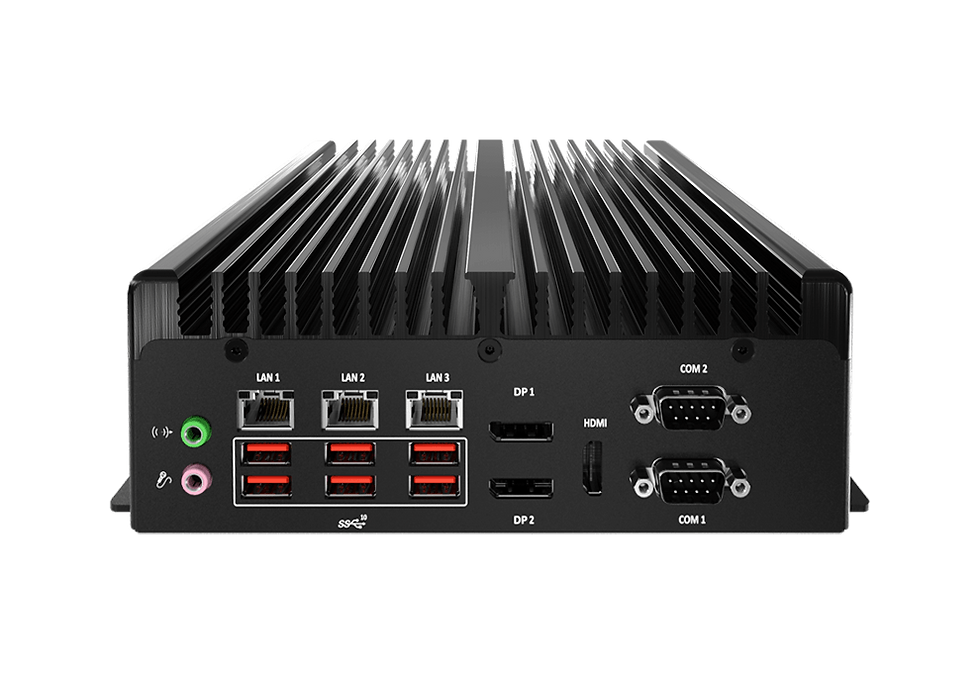

Small Form Factor Computer with LGA 1700 for Intel 12th/13th/14th Gen CPU & Q670E PCH, 2x DP, 1x HDMI, 2x COM, 3x LAN
| System | |
|---|---|
| Processor | Support 12th/13th/14th Gen Intel® ADL & RPL Processor (LGA 1700, 35W TDP) - Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, 35W - Intel® Core™ i7-14700T/i7-13700TE/i7-12700TE, 35W - Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, 35W - Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, 35W - Intel® Core™ 300T, 35W - Intel® Pentium® G7400TE, 35W - Intel® Celeron® G6900TE, 35W |
| System Chipset | Intel® Q670E Express Chipset |
| LAN Chipset | Intel® I226LM PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN |
| Audio Codec | Realtek ALC897 |
| System Memory | 2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB) |
| BIOS | AMI UEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
|---|---|
| Display Port | 2x Dual Mode DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1x HDMI 1.4b Max Resolution 4096 x 2304 @24Hz |
| Multiple Display | 3x Independent Displays |
| Storage | |
|---|---|
| M.2 | 1x M.2 M key Type (2242/2280): ● Support PCIe x4 Gen3 NVMe SSD ● PCIe x4 Gen3 signal from PCH ● Support B+M Key ● Default: 128GB SSD |
| Expansion | |
|---|---|
| M.2 B-Key | 1x M.2 B key Type: 3042 with Nano SIM Holder (Support PCIe x1 + USB 3.2 Gen 2 x1 + USB 2.0, 5G/4G/LTE/AI Module) |
| M.2 E-Key | 1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0; Support CNVi) Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported) |
| Operating System | |
|---|---|
| Windows | Windows 10/11 |
| Linux | Linux Kernel |
| I/O | |
|---|---|
| Audio | 1x Mic-in, 1x Line-out |
| COM | 4x DB9 COM1:RS232/422/485 COM2: RS232/422/485 COM3: RS485 COM4: RS485 |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 3x RJ45 (2.5GbE) |
| USB | 6x USB 3.2 Gen2 2x USB 3.2 Gen1 2x USB 2.0 Type-A |
| Others | 5x Antenna Holes 1x Power button 1x HD LED 1x Power LED |
| Power | |
|---|---|
| Power Adapter | Optional AC/DC 24V/5A, 120W |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 4-pin Terminal Block |
| Environment | |
|---|---|
| Operating Temperature | 0°C to 50°C (35W CPU) Tested according to: IEC60068-2-1:2007 (Cold test procedure) IEC60068-2-2:2007 (Dry heat test procedure) IEC60068-2-3:2007 (Damp heat, steady state, test procedure) IEC60068-2-14:2009 (Wide temperature range thermal shock) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
|---|---|
| Construction | 192 (W) x 240 (D) x 69 (H) mm |
| Weights | 2.8 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting DIN-Rail Mounting (Optional) |
