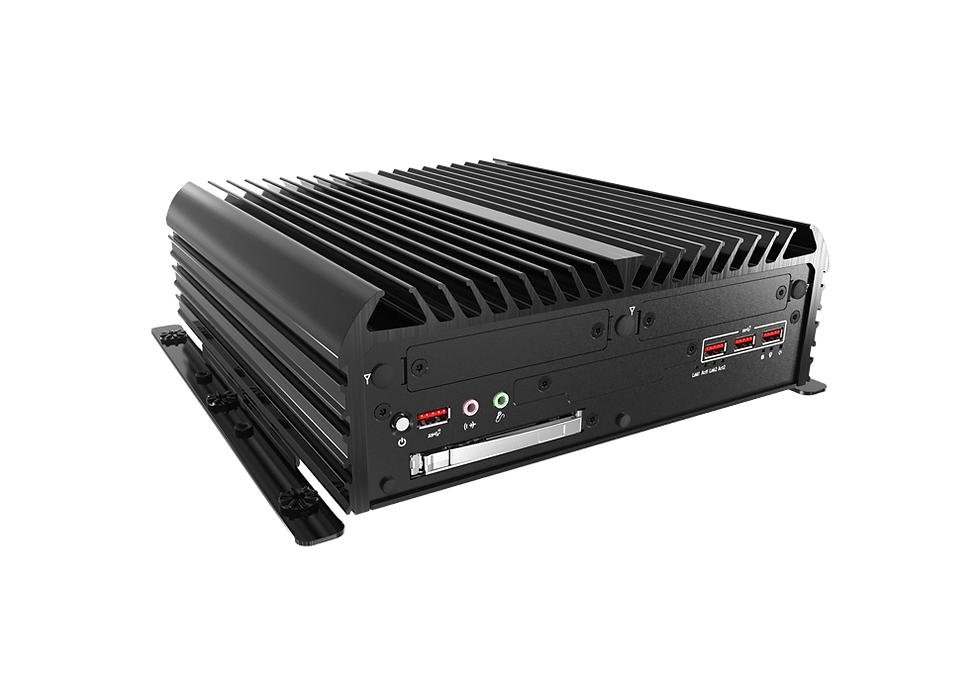

Industrial Computer w/ LGA 1700 for Intel 12/13/14th Gen CPU & R680E PCH

System
Processor
Support 12/13th/14th(Non-vPRO) Gen Intel® ADL & RPL Processor (LGA 1700, 65W/35W TDP)
•Intel® Core™ i9-14900/i9-13900E/i9-12900E, up to 24 Cores, 36MB Cache, up to 5.8 GHz, 65W
•Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5.5 GHz, 35W
•Intel® Core™ i7-14700, up to 20 Cores, 33MB Cache, up to 5.4 GHz, 65W
•Intel® Core™ i7-14700T, up to 20 Cores, 33MB Cache, up to 5.2 GHz, 35W
•Intel® Core™ i7-13700E/i7-12700E, up to 16 Core, 30MB Cache, up to 5.1 GHz, 65W
•Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz, 35W
•Intel® Core™ i5-14500/i5-13500E/i5-12500E, up to 14 Cores, 24MB Cache, up to 5.0 GHz, 65 W
•Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.8 GHz, 35W
•Intel® Core™ i3-13100E/i3-12100E, up to 8 Cores, 12MB cache, up to 4.4 GHz, 60W
•Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.4 GHz, 35W
•Intel® Core™ 300T, up to 2 Cores, 6MB Cache, up to 3.4 GHz, 35W
•Intel® Pentium® G7400E,2 Cores, 6MB Cache, 3.6 GHz, 46W
•Intel® Pentium® G7400TE, 2 Cores, 6MB Cache, 3.0 GHz, 35W
•Intel® Celeron® G6900E, 2 Cores, 4MB Cache, 3.0 GHz, 46W
•Intel® Celeron® G6900TE, 2 Cores, 4MB Cache, 2.4 GHz, 35W
System Chipset
Intel® R680E Express Chipset
LAN Chipset
2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226
Support Wake-on-LAN and PXE, Support TSN
Audio Codec
Realtek ALC888S
System Memory
2x 262-Pin DDR5 4800/5600MHz SODIMM.
Max. up to 64GB (ECC and Non-ECC)
Graphics
Intel® UHD Graphics 770/710
BIOS
AMI 256Mbit SPI BIOS
Watchdog
Software Programmable Supports 1~255 sec. System Reset
TPM
TPM 2.0

Display
Display Port
2x DisplayPort 1.4, Support resolution 5120 x 3200, Up to 7680 x 4320
DVI
1x DVI-I, support resolution 1920 x 1200
Multiple Display
Triple Display
VGA
Yes (by optional split cable)

Storage
M.2
1x M.2 B Key, 2242/3042/3052
(PCIe x2, Support AI Module/NVMe Storage)
(PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
mSATA
1x mSATA (Shared by 1x Mini PCI Express)
SIM Socket
2x External SIM socket (Mini PCIE/M.2 B Key attached)
SSD/HDD
1x 9mm 2.5" SATA HDD Bay (Internal)
1x 7mm 2.5" SATA HDD Bay (Hot-swappable)
Support RAID 0, 1

Expansion
M.2
1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
Mini PCIe
1x Full-size Mini PCIe (1x shared by 1x mSATA)
Expansion Modules
2x EDGEBoost I/O Brackets:
• 4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional)
• 2-Port RJ45 10GbE with Intel X710 Chipset
• 4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth)
• 1x M.2 B-Key, 2242 for AI/NVMe, 1x M.2 B-Key, 3042/3052 for 5G/AI/NVMe
• 1x M.2 M-Key, PCIe x4 Lane, 2242/2260 for AI Module/NVMe
• 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), 2x SIM socket, 1x SIM switch

Operating System
Windows
Windows 10/11
Linux
Linux kernel

I/O
Audio
1x Mic-in, 1x Line-out
CAN
2x CAN 2.0 A/B 2-pin Internal header
COM
2x RS-232/422/485 ; 4x RS-232/422/485 (Internal)
DIO
8 in / 8 out (Isolated)
LAN
2x RJ45
EDGEBoost I/O Bracket
2x EDGEBoost I/O Bracket (By mini PCIe interface)
USB
8x USB 3.2 Gen 2 (10 Gbps)
1x USB 3.2 Gen 1 (5 Gbps, 1x Internal),
2x USB 2.0 (Internal)
Others
5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch,
1x Remote Power On/Off
1x PC/Car Mode Switch, 1x Delay Time Switch
1x Removable CMOS Battery

Power
Power Adapter
Optional AC/DC 24V/9.2A, 220W
Optional AC/DC 24V/15A, 360W (i7/i9 CPU)
Power Mode
AT, ATX
Power Ignition Sensing
Power Ignition Management
Power Supply Voltage
9~48VDC
Power Connector
5-pin Terminal Block
Power Protection
OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reverse Protection

Environment
Operating Temperature
-25°C to 70°C (35W CPU)
-25°C to 60°C (65W CPU)
(Optional External Fan Kit: Recommended for i9 CPU/65W)
Storage Temperature
-30°C to 85°C
Relative Humidity
10% to 95% (non-condensing)
Certification
UL 62368 Ed. 3, CE, FCC Class A
Vibration
IEC60068-2-64:2008
With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Designed to comply with MIL-STD-810G Method 514.7
Procedure I
Shock
IEC60068-2-27:2008
With SSD: 50G half-sin 11ms
Designed to comply with MIL-STD-810G Method 516.7
Procedure I

Physical
Construction
240 (W) x 261 (D) x 79 (H) mm
Weights
4.5 kg
Construction
Extruded Aluminum with Heavy Duty Metal
Mounting Options
Wall Mounting
